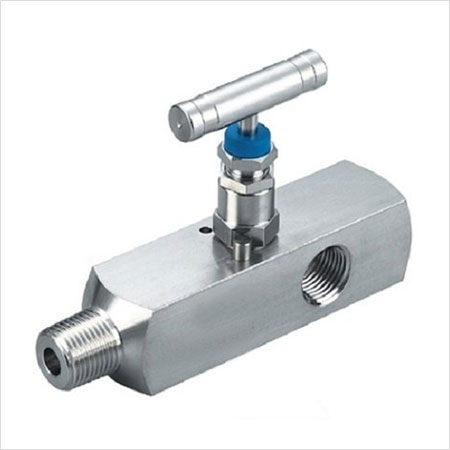

POWERTECH Gauge Root Valve provides an efficient means of mounting gauge and static instrumentation. Our Gauge Root Valves offer a multi-function capability to isolate, calibrate and vent gauge, pressure switches and static instrument applications.
PVI Gauge Valves incorporate high quality needle valves designed to operate at pressures up to 6000 psig with standard PTFE gland packing. The packing is positioned below the stem threads to ensure no contact between system process and the stem threads. The upper gland body is tightened and secured into position by a lock nut. The lower gland body is directly screwed into the component body and secured into place to prevent accidental loosening of the gland body during operation. By offering different outlets, these root valves can suit an assortment of industrial measure positions and handle tasks.
GAUGE ROOT VALVES are manufactured in:
- DESIGN : Screwed Bonnet, Extended Type, 2 Outlet Port, 3 Outlet Port
- SPINDLE : Non–Rotating Tip - “Vee” Type & Ball Type.
Rotating Tip - “Vee” type only. - SEAT : Metal to Metal
- PACKING : Standard-PTFE. Optional GRAPHOIL, PEEK, CFT etc.
- SIZE : 1/8” to 1”
- PATTERNS : Straight
- PRESSURE RATING : PTFE – 6,000 PSI & High Pressure up to 10,000 PSI. GRAPHITE – 4,500 Psi.
- END CONNECTIONS : NPT, BSPT, BSPP, Butt Weld, Socket Weld, Compression Fittings.
- HANDLE : Standard - CS zinc plated / SS Bar Type
- M.O.C : Body-ASTM A182 F 316(L), 304(L) etc. All other spares in ASTM A 479/A276 Gr. 316(L), 304(L).
- OTHER M.O.C’s : Inconel , Monel, Hastelloy C. etc.
- Products can be supplied to conform to NACE MR 0175.
- TEMPERATURE : PTFE - Max. up to 200 Deg. C
GRAPHITE - Max. up to 650 Deg. C. - ORIFICE DIA. : 3 mm to 9.5 or 10 mm
- TESTING : Standard- Hydro Test, Pneumatic Test, Nitrogen Test
Optional - Vibration, Temperature Cycling, Helium etc.
NOTE: EACH VALVE IS 100% TESTED AT REQUIRED PRESSURE TO ENSURE LEAK TIGHTNESS AT SEAT, SHELL AND GLAND.
Special/Optional Key Features :
PVI offers Valves with Non-Rotating Tip Stem (NRT) thereby providing tight, repeatable shutoff without the galling or cross-scoring that occurs on V & ball-type stems.

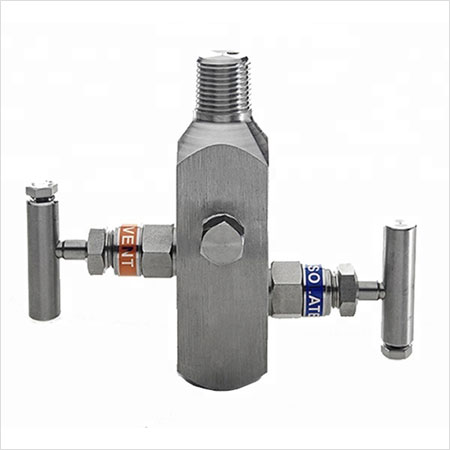

The PVI Gauge Root Valve comes with optional bleed valves to ease of during drainage.
